AWS S3 Connector v1.0
Go to your Amazon S3 with the correct account and get the credentials details like username, password, access key id, and secret access key.

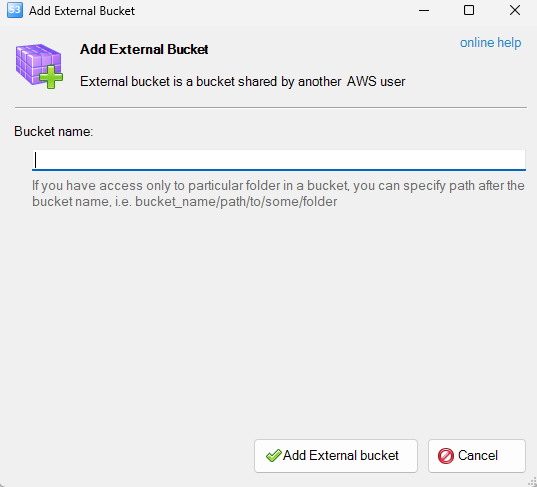

1. Setting up Amazon S3 Bucket Viewer (S3 Browser)

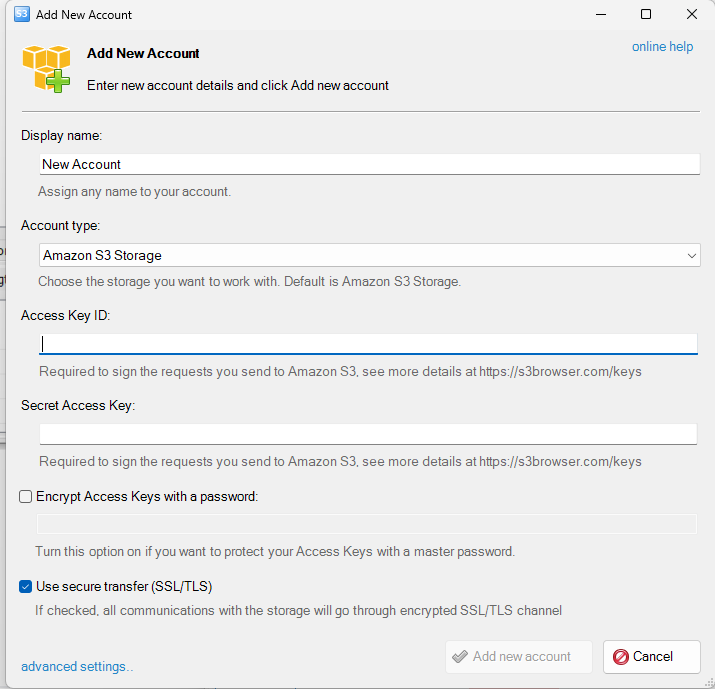

Download the S3 Browser (https://s3browser.com/ ) (S3 Browser is an easy-to-use client for Amazon S3 Service) and logged in with credentials got from the previous step.
2. Connector Actions and Tests
Action Name / Method | Get Items | |||||
|---|---|---|---|---|---|---|
Action Description | Get multiple files data from S3 | |||||

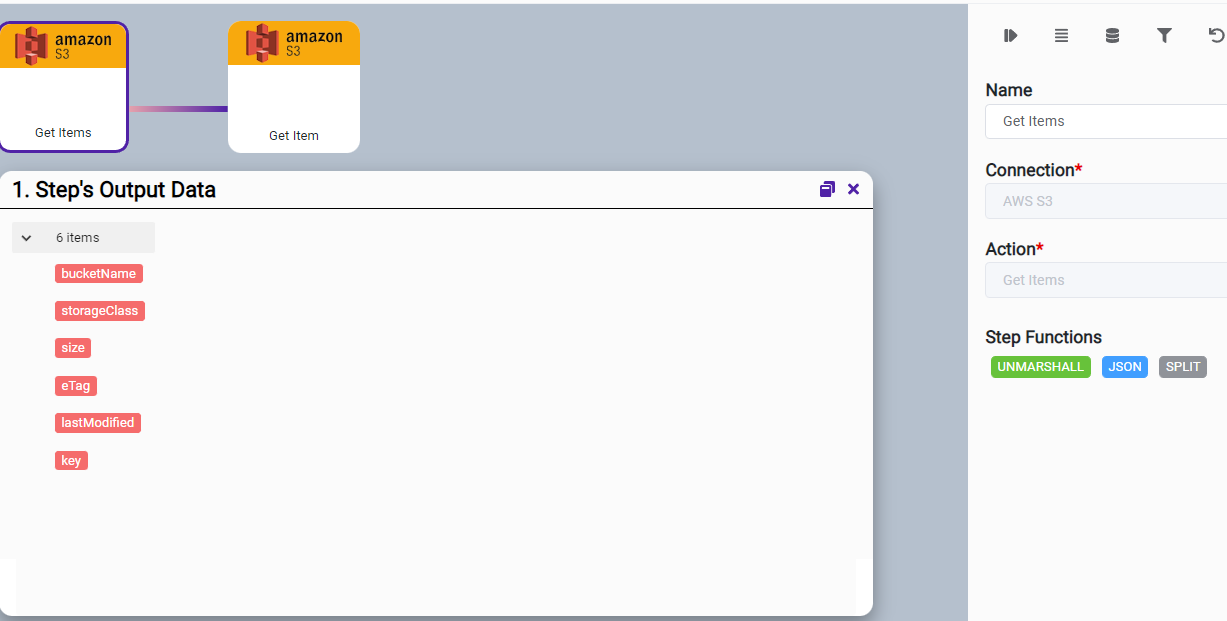

Test Case | Get all the items detail of AWS S3 | |||||
Request Body Name | Parameter | Type | Description (Example) | |||
Action Name / Method | Get Item | |||||
|---|---|---|---|---|---|---|
Action Description | Get single file data from S3 | |||||

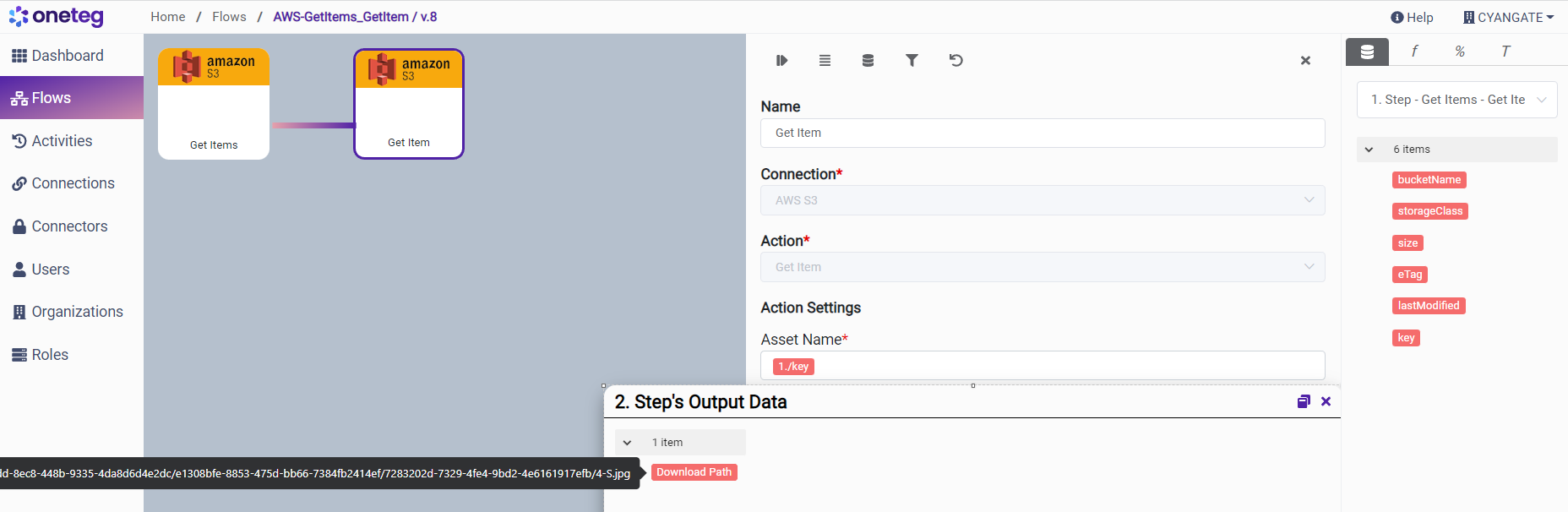

Test Case | Get a single item detail of AWS S3 | |||||
Request Body Name | Parameter | Type | Description (Example) | |||
| Asset Name | String | File name to download | |||

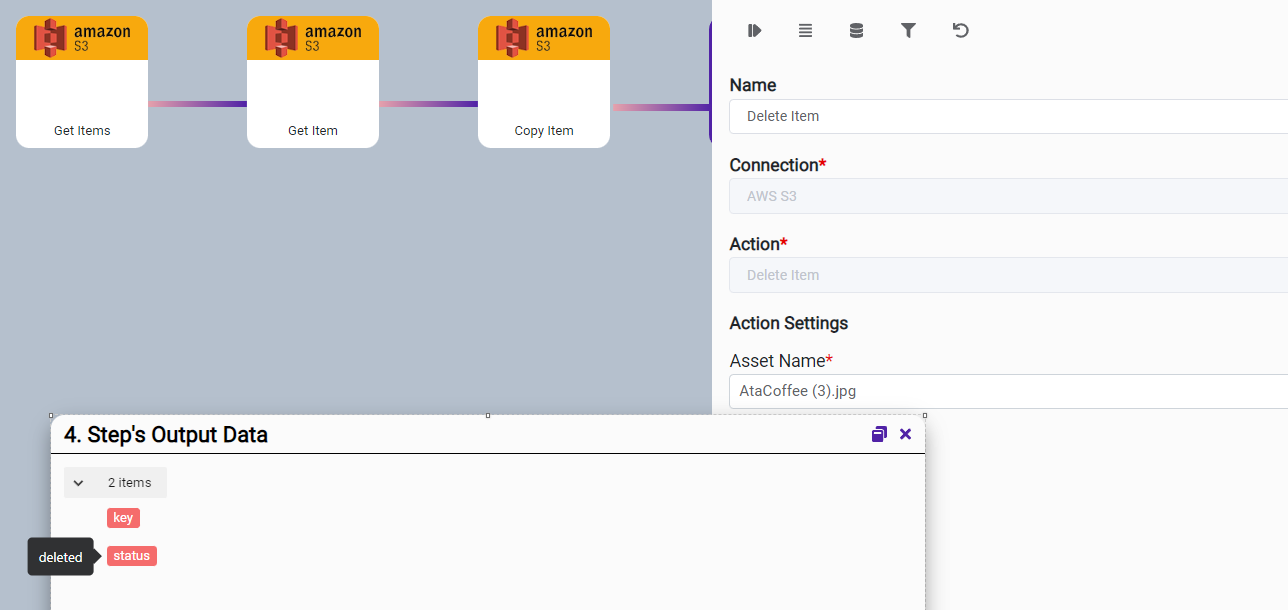

Action Name / Method | Delete Item | |||||
|---|---|---|---|---|---|---|
Action Description | Delete item from S3 | |||||

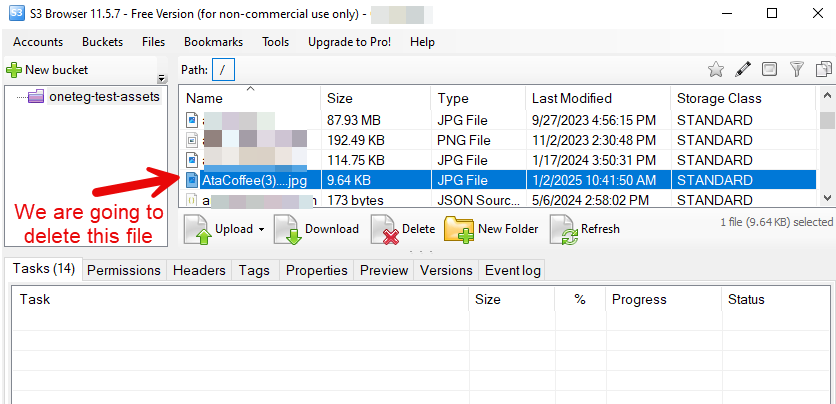

Test Case | Delete a single item of AWS S3 | |||||
Request Body Name | Parameter | Type | Description (Example) | |||
| Asset Name | String | Name of file to be deleted | |||
The selected file is deleted.
Action Name / Method | Create Item | ||
|---|---|---|---|
Action Description | Upload item to S3 | ||
Test Case | Upload item to AWS S3 | ||
Request Body Name | Parameter | Type | Description (Example) |
| Asset Path | String | File to be uploaded on S3 |

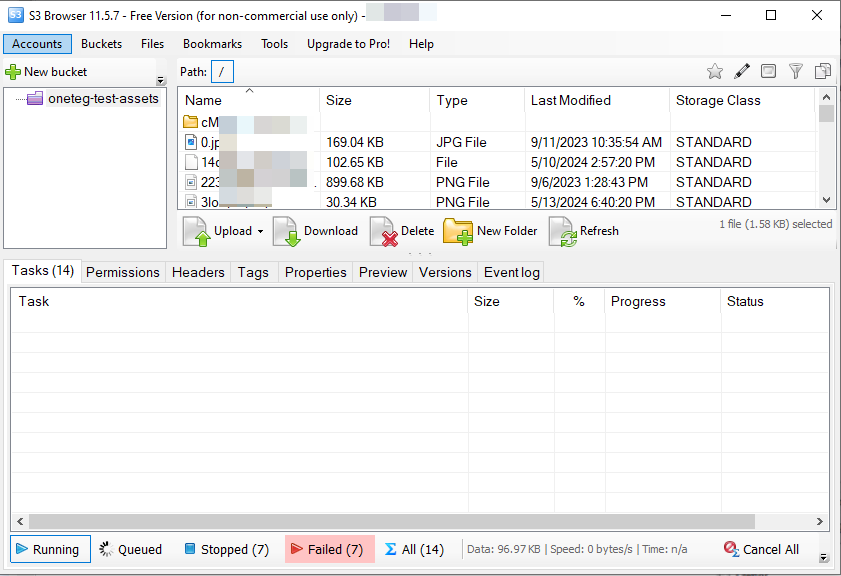

Step 1: We will create a file as “application.yml”. When S3 Browser is viewed the file will not be present.

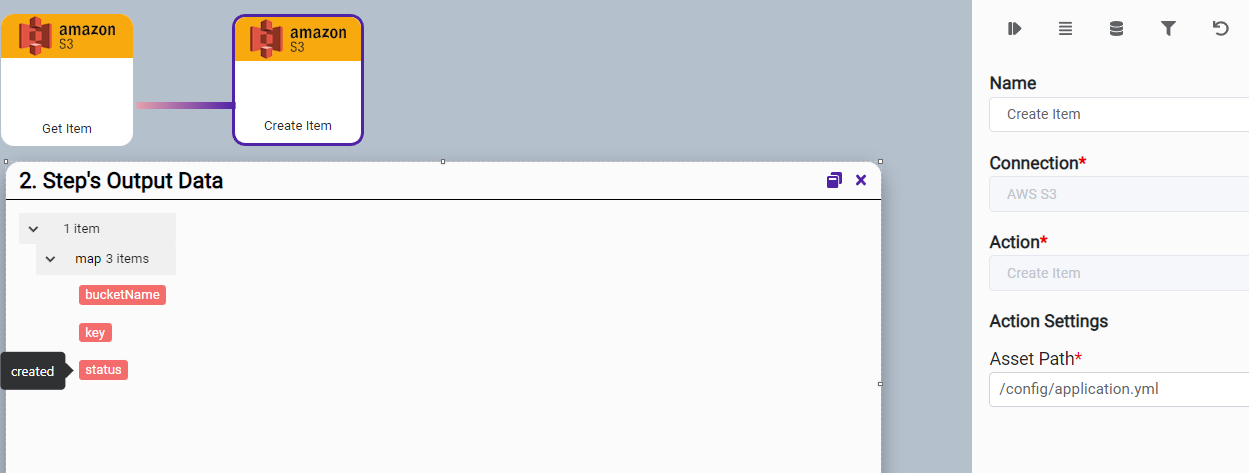

Step 2: Create Item action will be executed within OneTeg as shown below:

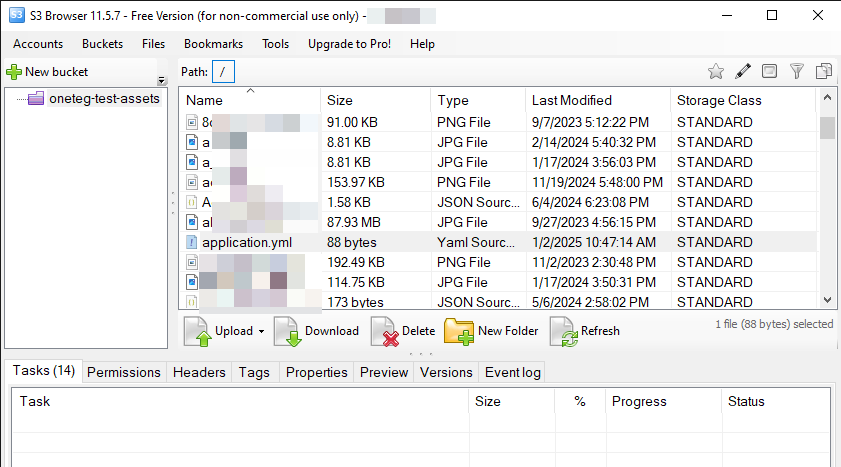

Step 3: After action is executed the intended document will be created and visible on S3 as shown below:
Action Name / Method | Copy Item | ||
|---|---|---|---|
Action Description | Copy the files on S3 | ||
Test Case | Copy different files on AWS S3 | ||
Request Body Name | Parameter | Type | Description (Example) |
| Existing Asset Name | String | File to be copied |
| New Asset Name | String | New file to be created |

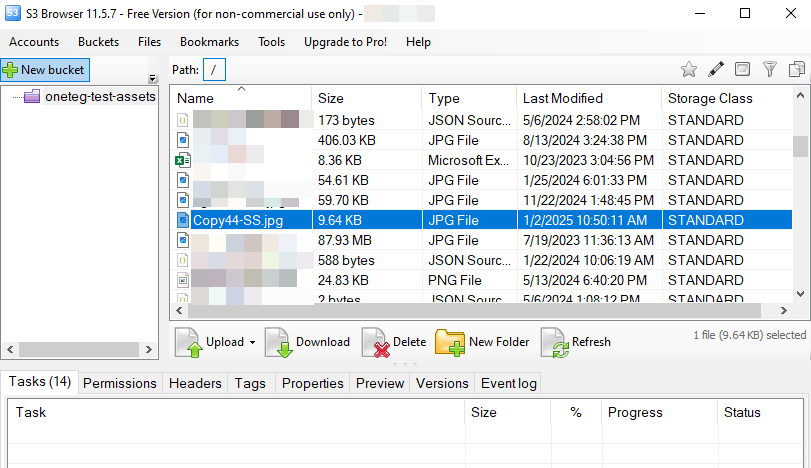

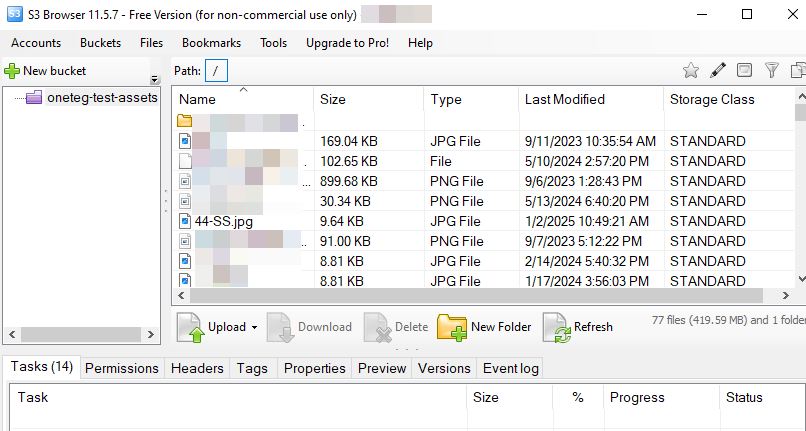

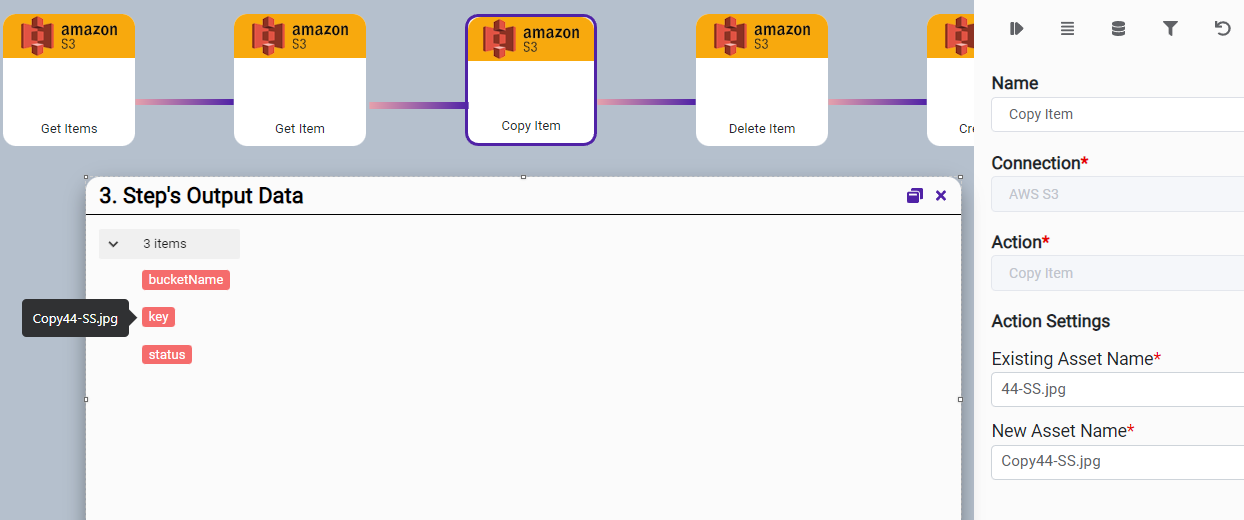

Copying the file “44-SS.jpg”
3. Connection Settings and Configuration
Settings Parameters | Value | Description | Required (Y/N) | Default Value |
|---|---|---|---|---|
Connector | AWS S3 | Connector Name | Y | AWS S3 |
Authentication | BASIC | Authentication Type | Y | BASIC |
Username | Username | Username from credentials | Y | - |
Password | Password | Password from credentials | Y | - |
Endpoint | Endpoint required for performing CRUD on AWS S3 APIs. | Y |
|
