PostAds Connector v1.0

1. Prerequisites and Additional Steps and Helper Utilities

2. Connector Actions and Tests

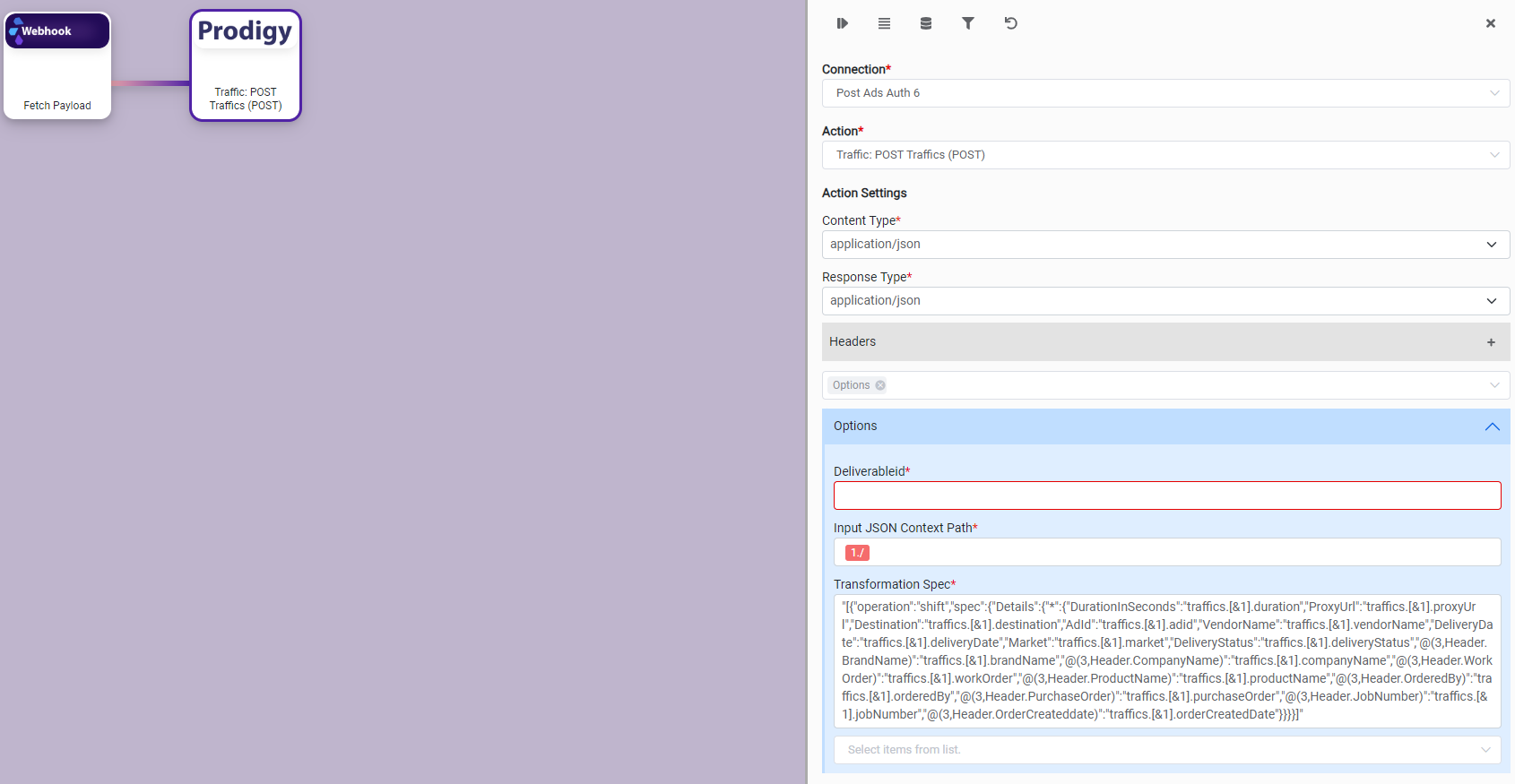

Action Name / METHOD	Traffic: POST Traffics (POST)
Action Description	Send transformed traffic data into Prodigy. For transformation, we will transform the previous step’s output (probably a webhook step) and transform it using the Input JSON Context Path and Transformation Spec parameters described below. Finally, the transformed request body will be sent to Prodigy.
Request Body Name	Parameter	Type	Description (Example)
Options	Deliverableid	Integer	Obsolete, may be deleted
Options	Input JSON Context Path	String	The root of the step output that needs to be transformed should be injected. Ex: 1./ from webhook step
Options	Transformation Spec	String	Jolt Transformation Spec should be entered between double quotes, i.e., (“….”). This spec should not have any new lines, it should be converted into one line, using a tool like https://w3percentagecalculator.com/json-to-one-line-converter/ Ex: "[{"operation":"shift","spec":{"Details":{"":{"DurationInSeconds":"traffics.[&1].duration","ProxyUrl":"traffics.[&1].proxyUrl","Destination":"traffics.[&1].destination","AdId":"traffics.[&1].adid","VendorName":"traffics.[&1].vendorName","DeliveryDate":"traffics.[&1].deliveryDate","Market":"traffics.[&1].market","DeliveryStatus":"traffics.[&1].deliveryStatus","@(3,Header.BrandName)":"traffics.[&1].brandName","@(3,Header.CompanyName)":"traffics.[&1].companyName","@(3,Header.WorkOrder)":"traffics.[&1].workOrder","@(3,Header.ProductName)":"traffics.[&1].productName","@(3,Header.OrderedBy)":"traffics.[&1].orderedBy","@(3,Header.PurchaseOrder)":"traffics.[&1].purchaseOrder","@(3,Header.JobNumber)":"traffics.[&1].jobNumber","@(3,Header.OrderCreateddate)":"traffics.[&1].orderCreatedDate"}}}}]" Make sure that there is no hidden new line character at the end.*
Options	Traffic	Array	If we enter any value for Traffic array (or any other field), the transformed traffic array will be overwritten by the value entered in UI.

An example of the incoming payload structure for Webhook is given below.

CODE

{
    "Header": {
        "PurchaseOrder": "dev test",
        "JobNumber": "",
        "OrderedBy": "John Doe,
        "OrderCreateddate": "APR 26, 2021, 07:04 PM",
        "CompanyName": "My Company 21",
        "BrandName": "My Company Consumer Group (VCG)",
        "ProductName": "Fios",
        "WorkOrder": "812791"
    },
    "Details": [
        {
            "Destination": "0041",
            "Market": "Reno NV",
            "AdId": "TEST10172022001",
            "DeliveryStatus": "Complete",
            "DeliveryDate": "2023-04-26 04:09 PM",
            "VendorName": "OVER THE NOSE",
            "DurationInSeconds": 10,
            "ProxyUrl": "https://mycompany.orderanalytics/datetime/test.mp4",
            "TrafficExpressUrls": null
        },
        {
            "Destination": "0041",
            "Market": "Reno NV",
            "AdId": "TEST10182022001",
            "DeliveryStatus": "Complete",
            "DeliveryDate": "2023-04-26 04:47 PM",
            "VendorName": "OVER THE NOSE",
            "DurationInSeconds": 10,
            "ProxyUrl": "https://mycompany.orderanalytics/datetime/test2.mp4",
            "TrafficExpressUrls": null
        },
        {
            "Destination": "0041",
            "Market": "Reno NV",
            "AdId": null,
            "DeliveryStatus": "Complete",
            "DeliveryDate": "2023-04-26 04:11 PM",
            "VendorName": "PIXIE",
            "DurationInSeconds": null,
            "ProxyUrl": null,
            "TrafficExpressUrls": [
                "https://ycompany.orderanalytics/datetime/dates.docx"
            ]
        }
    ]
}
