Spotify Connector v1.0
1. General Information
Log in to https://developer.spotify.com/dashboard/login with your Spotify Credentials. Spotify Premium subscription is needed to run all actions.

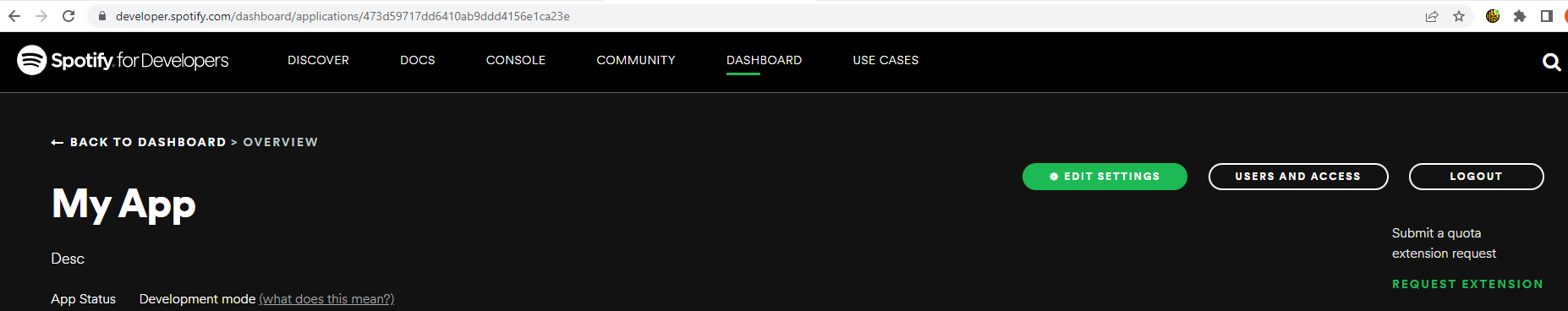

Create an app if you do not have one by clicking “CREATE AN APP”, after creating a new app, app dashboard will be opened, then click “EDIT SETTINGS”
In there enter redirect URIs below and save them.

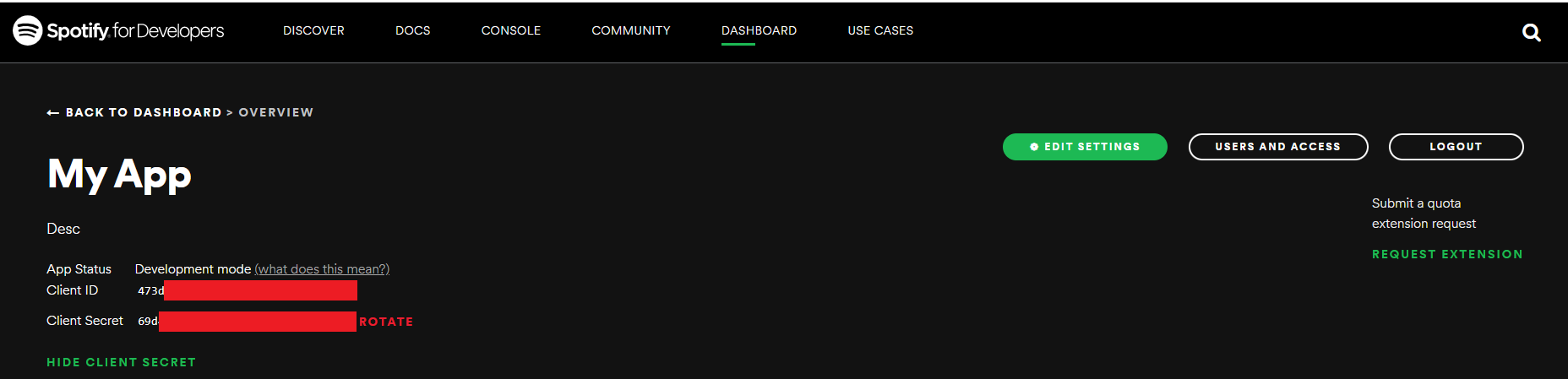

Then go back to dashboard and click “SHOW CLIENT SECRET“ and get your Client ID and Secret

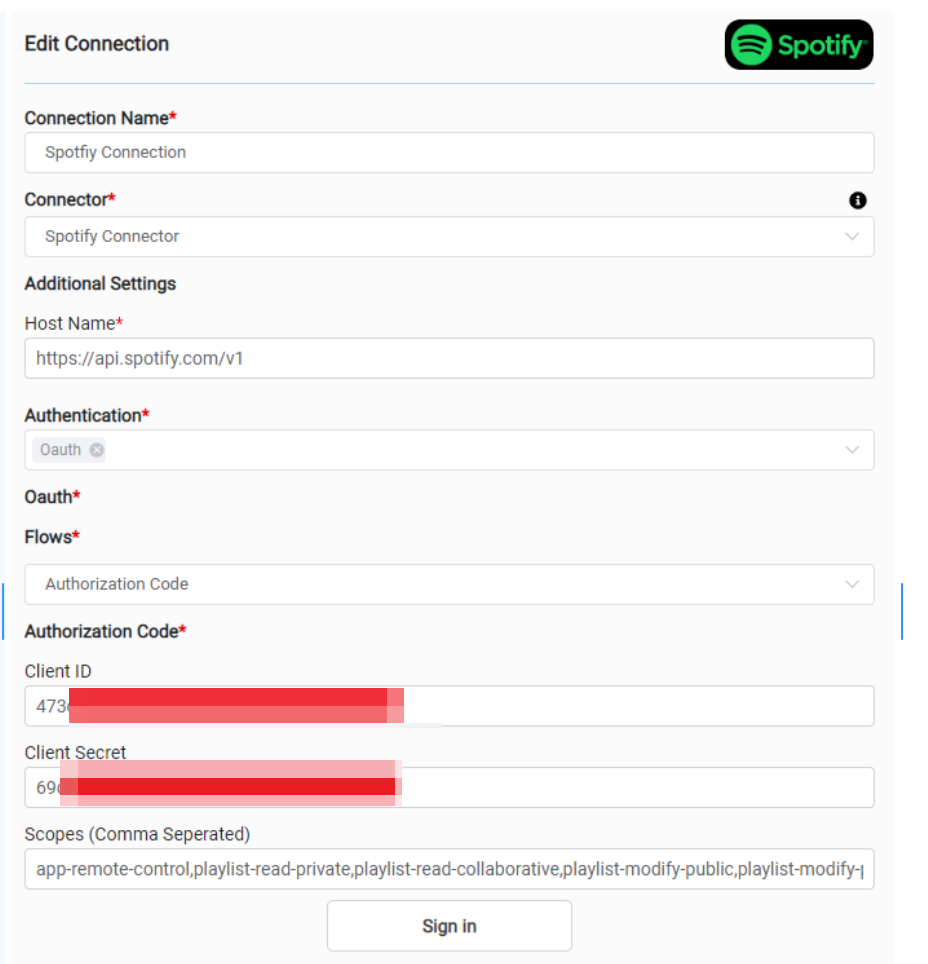

After that, go to Connection Page in OneTeg. Enter Client ID and Secret from previous step and enter following line into Scopes (Comma Seperated) and save.
app-remote-control,playlist-read-private,playlist-read-collaborative,playlist-modify-public,playlist-modify-private,user-library-read,user-library-modify,user-read-private,user-read-email,user-follow-read,user-follow-modify,user-top-read,user-read-playback-position,user-read-playback-state,user-read-recently-played,user-read-currently-playing,user-modify-playback-state,ugc-image-upload,streaming
Spotify authentication is ready!
2. Connector Action & Tests
This document will focus on two actions that are required to Play a song. Others will not be considered, and they are not tested.
Before running these actions, please open a Spotify app from your PC (Web App or Desktop App) or your mobile device. It will be better to use only one device for demos. Most of the tests are done via PC Web App from https://open.spotify.com/

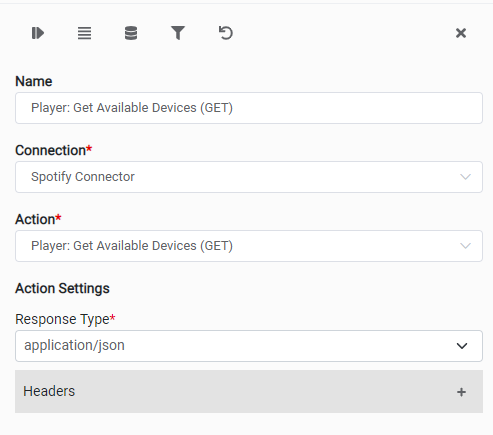

Action Name / METHOD | Player: Get Available Devices (GET) |
| ||
|---|---|---|---|---|
Action Description | Lists the available connected devices to Spotify (PC Web, PC Desktop APP, phone. etc., there can be multiple PC Web devices if there are more than one tabs of Spotify are opened in browser) |
| ||
Request Body Name | Parameter | Type | Description (Example) | Output (JSON) |
- | - | - | - | List of devices represented as an array |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

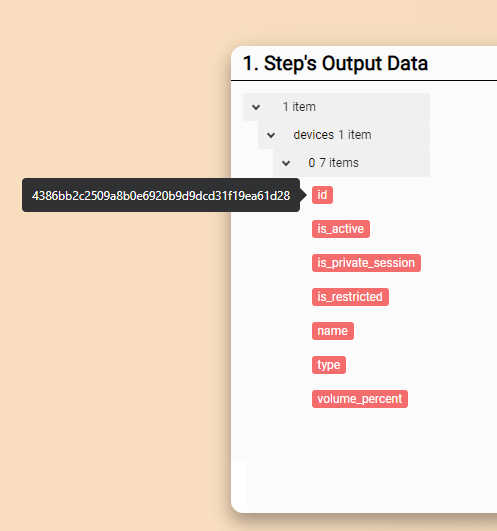

WARNING Please note that there can be more than one device listed in JSON Array, we have to choose the correct one in the next step, i.e., if we want to play in our PC, we should select the id of that. Name and Type fields have the information about the device.

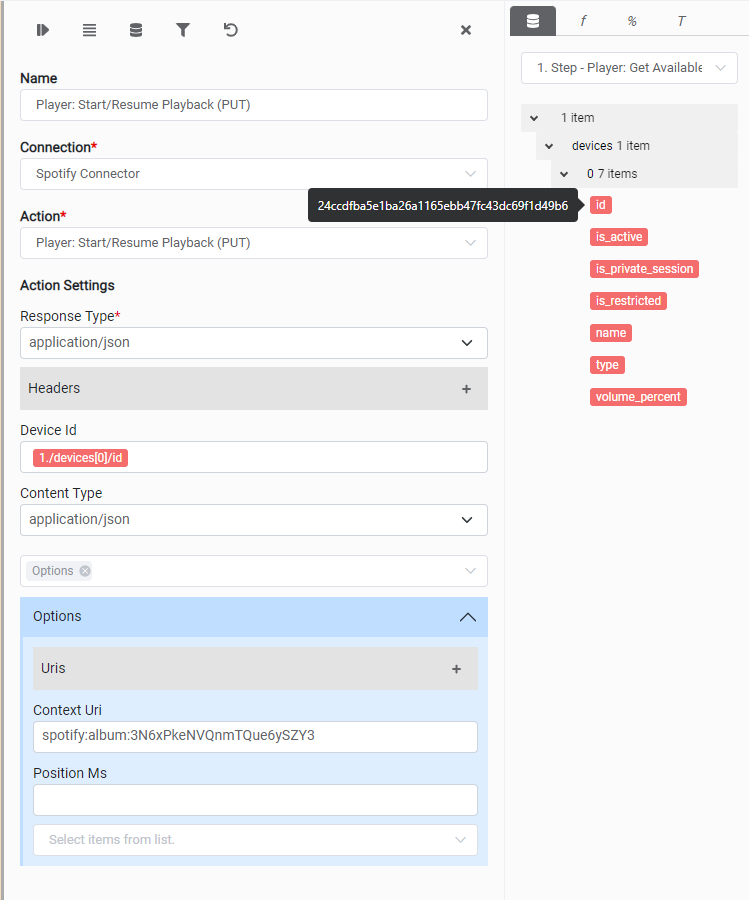

Action Name / METHOD | Player: Start/Resume Playback (PUT) | ||
|---|---|---|---|
Action Description | Resume the currently paused song or start a new song | ||
Request Body Name | Parameter | Type | Description (Example) |
- | Device Id | String | Device id taken from previous steps, ex: 24ccdfba5e1ba26a1165ebb47fc43dc69f1d49b6 |

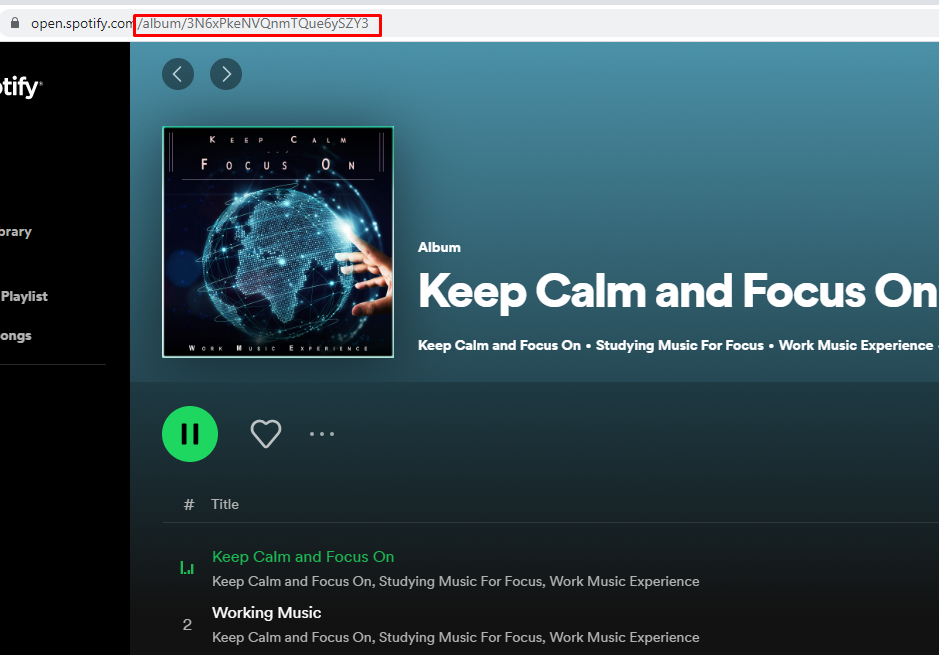

Options | Context Uri | String | If empty, currently paused song will be resumed. If not empty, we should enter Spotify URI (ex: spotify:album:3N6xPkeNVQnmTQue6ySZY3), this uri can be taken from url and modified by changing album/3N6xPkeNVQnmTQue6ySZY3 into album:3N6xPkeNVQnmTQue6ySZY3 and adding spotify: as a prefix => spotify:album:3N6xPkeNVQnmTQue6ySZY3, see image below. Spotify may not play tracks directly, therefore it will be better to select albums. Playlists can also work. For now, we can run the first song of the album/playlist from OneTeg. Needs improvement. |
|
|
|
|
|
|
|
|
WARNING Sometimes selected device can become non-active (can be seen from is_active field from the previos step) if not used for a time, you may need to make that device active (clicking Play and Pause in that device) in order to play the music.
Action Name / METHOD |
| ||
|---|---|---|---|
Action Description |
| ||
Request Body Name | Parameter | Type | Description (Example) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3. Connection Settings and Configuration
After save operation, click the same Spotify connection again and click Sign In button. Enter your Spotify credentials in the opening window and click OK (or any other approval button).
