WoodWing Studio Connector v1.0
1. Prerequisites and Additional Steps, Developer Key
2. Connector Action & Tests

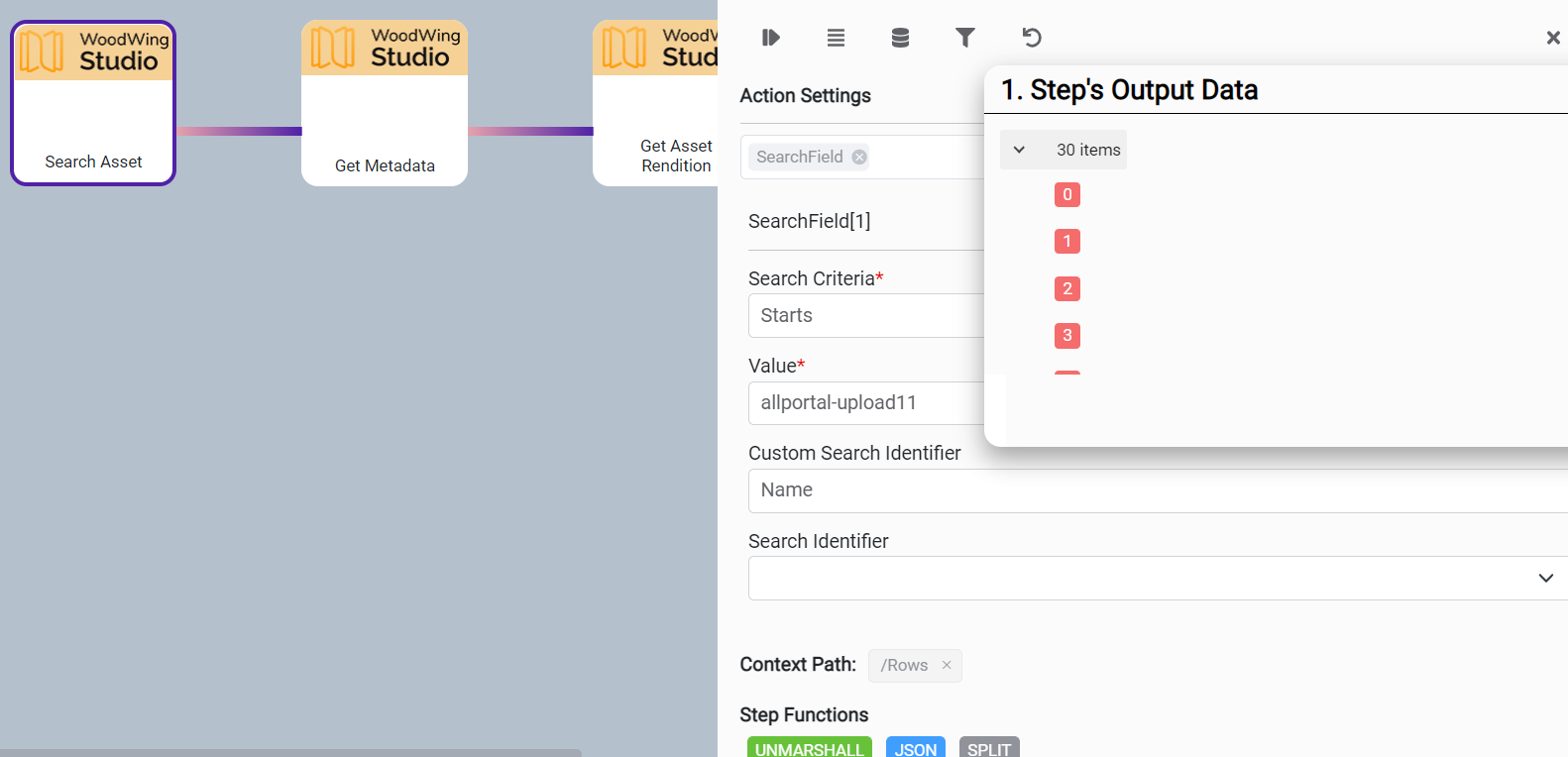

Action Name / Method | Search Asset | ||
|---|---|---|---|
Action Description | Search & get asset | ||
Test Case | Search & get asset | ||
Request Body Name | Parameter | Type | Description (Example) |
SearchField | Search Criteria | String | Specify the searching criteria e.g Starts/Ends/Contains |
SearchField | Value | String | Specify any keyword to find |
SearchField | Custom Search Identifier | String | User can specify any custom defined field name here e.g oneteg |
SearchField | Search Identifier | String | List of predefined fields |

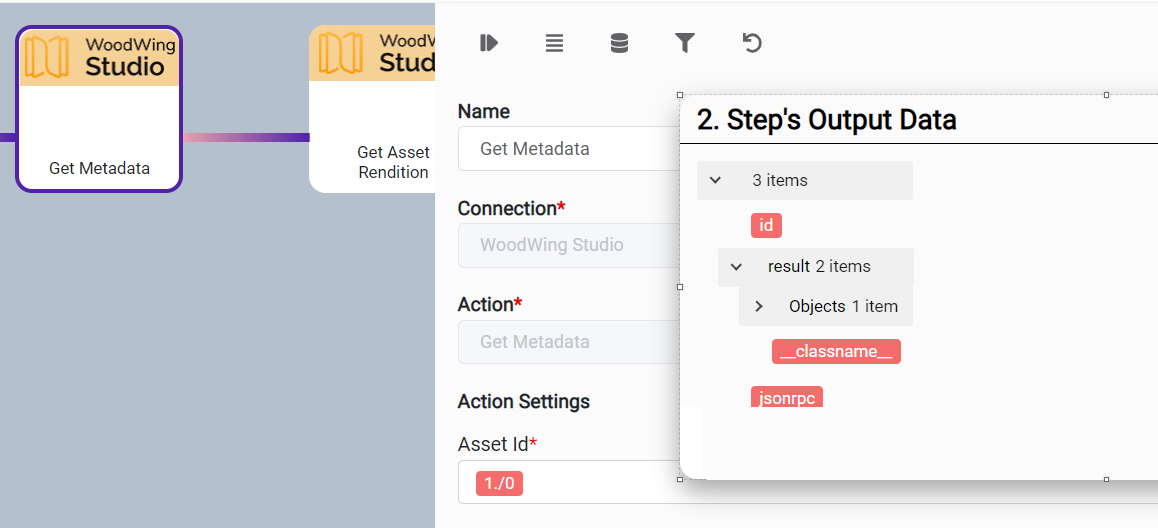

Action Name / Method | Get Metadata | ||
|---|---|---|---|
Action Description | Retrieves metadata details of any asset | ||
Test Case | Retrieves metadata details of any asset | ||
Request Body Name | Parameter | Type | Description (Example) |
| Asset ID | String | Specify the asset identifier e.g 21 |

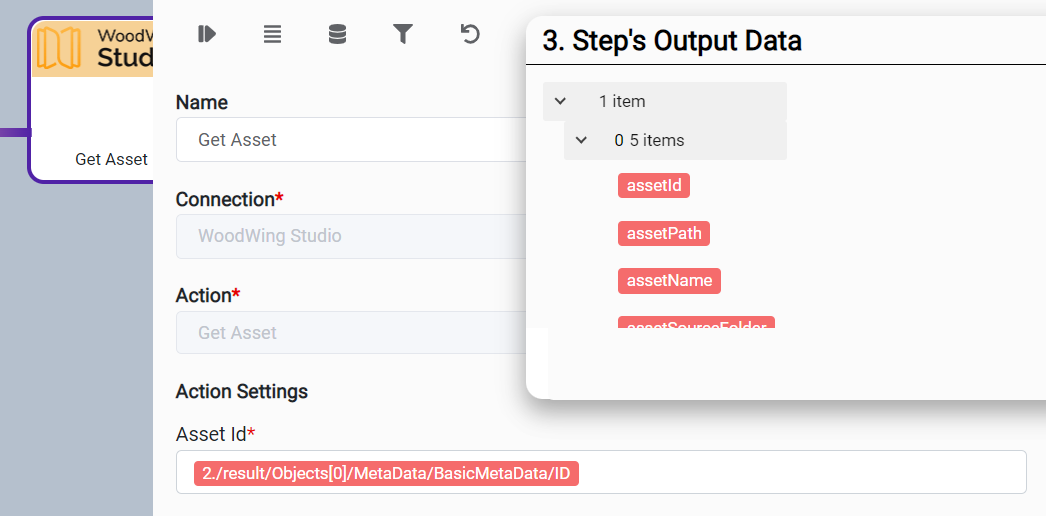

Action Name / Method | Get Asset | ||
|---|---|---|---|
Action Description | Retrieves contents of any asset | ||
Test Case | Retrieves contents of any asset | ||
Request Body Name | Parameter | Type | Description (Example) |
| Asset ID | String | Specify the asset identifier e.g 21 |

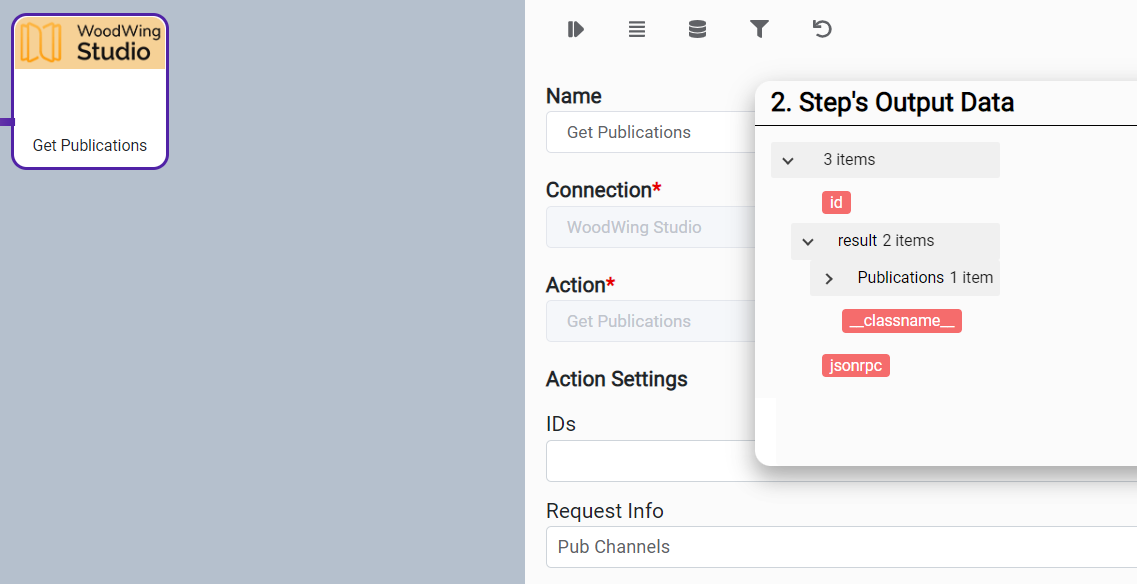

Action Name / Method | Get Publications | ||
|---|---|---|---|
Action Description | Retrieves data of publications, categories, action properties and other type of data | ||
Test Case | Get list of Brands (Publications) | ||
Request Body Name | Parameter | Type | Description (Example) |
| IDs | String | Specify id of any object |
| Request Info | String | Specify the request type of which the data retrieves e.g. publications, categories |

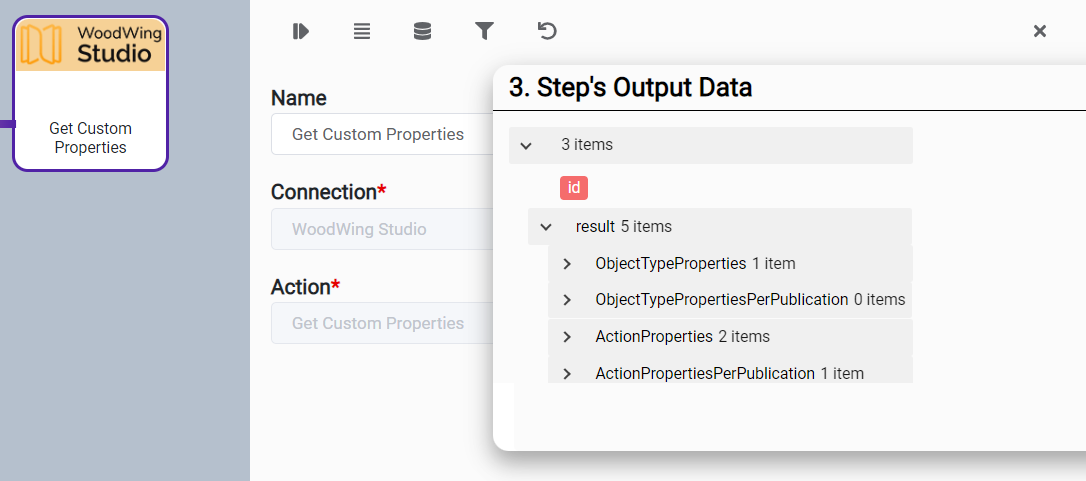

Action Name / Method | Get Custom Properties | ||
|---|---|---|---|
Action Description | Returns the global and publication-specific custom properties | ||
Test Case | Returns the global and publication-specific custom properties | ||
Request Body Name | Parameter | Type | Description (Example) |

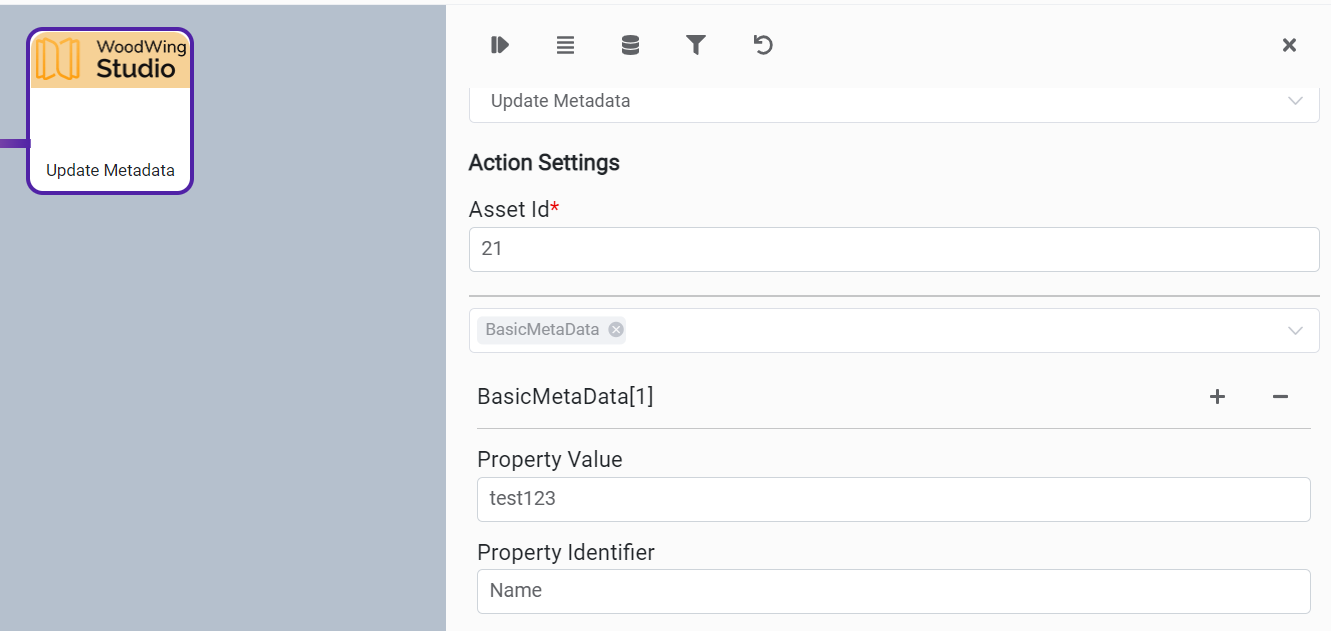

Action Name / Method | Update Metadata | ||
|---|---|---|---|
Action Description | Update asset metadata properties | ||
Test Case | Update asset name value | ||
Request Body Name | Parameter | Type | Description (Example) |
| Asset ID | String | Specify asset id for updating the metadata property |
BasicMetaData | Property Identifier | String | Specify property name e.g Name |
BasicMetaData | Property Value | String | Specify property value e.g <new name of the asset> |

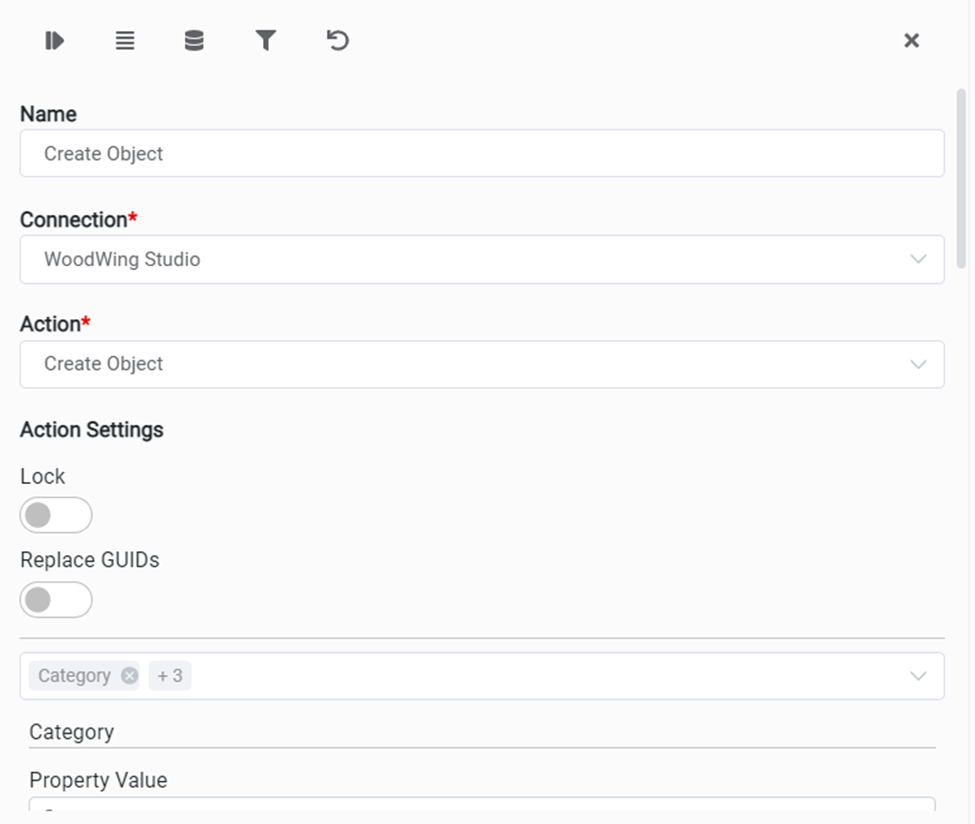

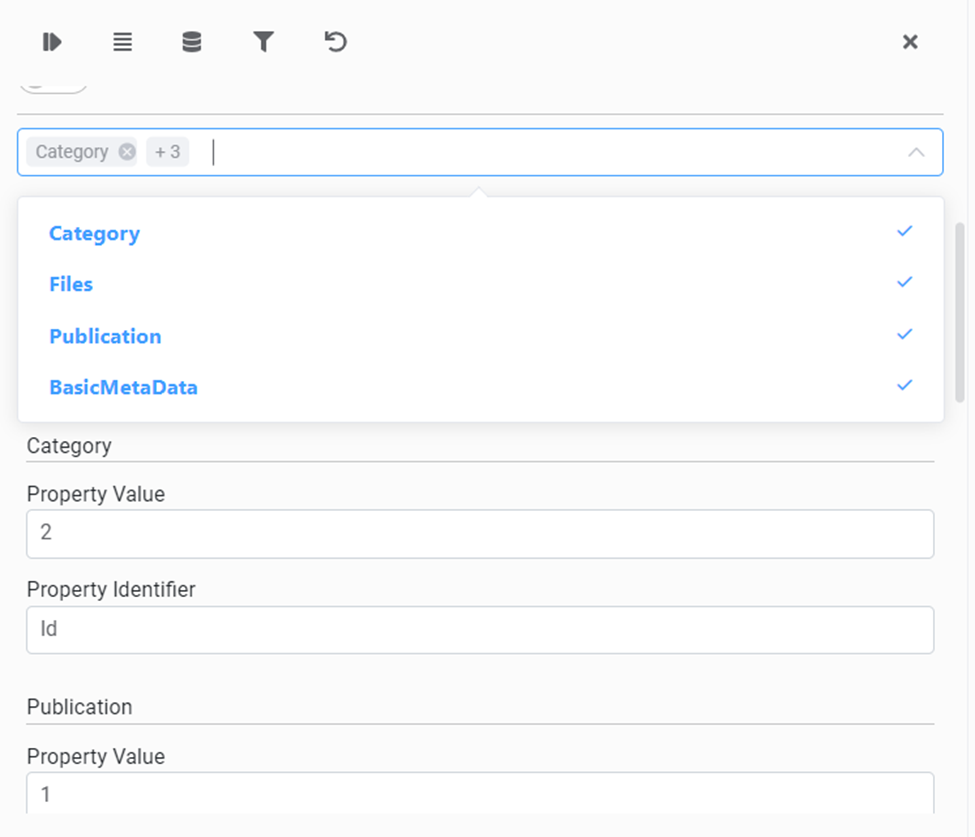

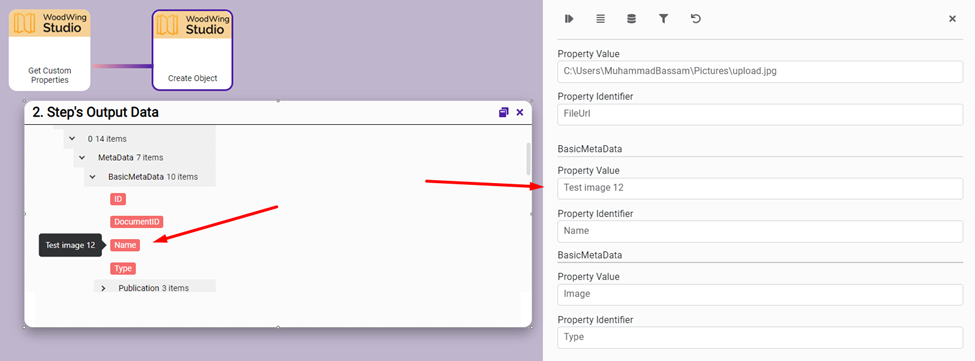

Action Name / Method | Create Object | ||
|---|---|---|---|
Action Description | Creates new objects (article, image, layout) in the database | ||

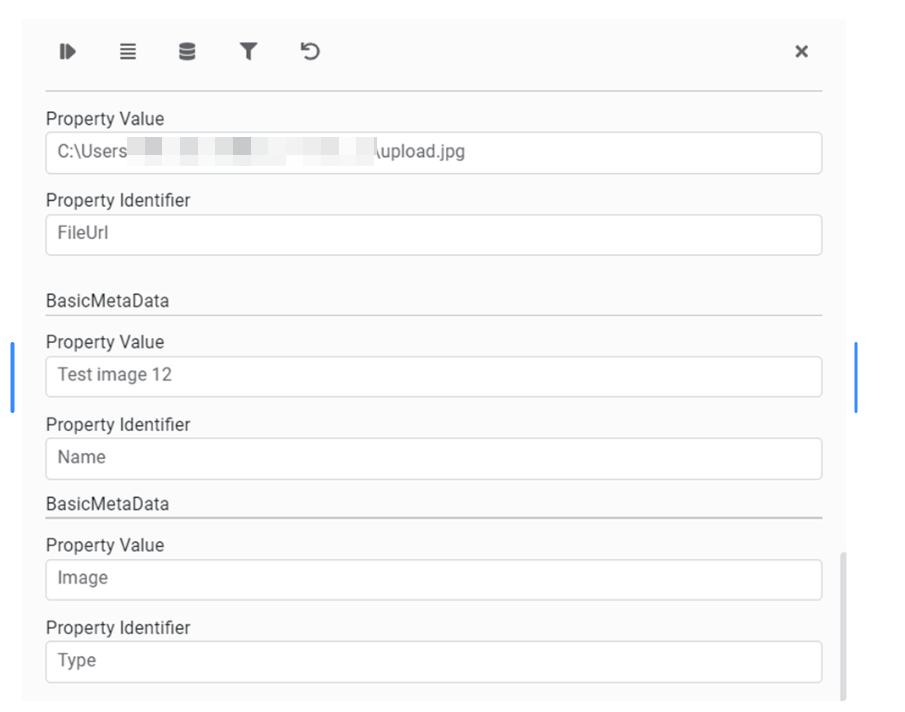

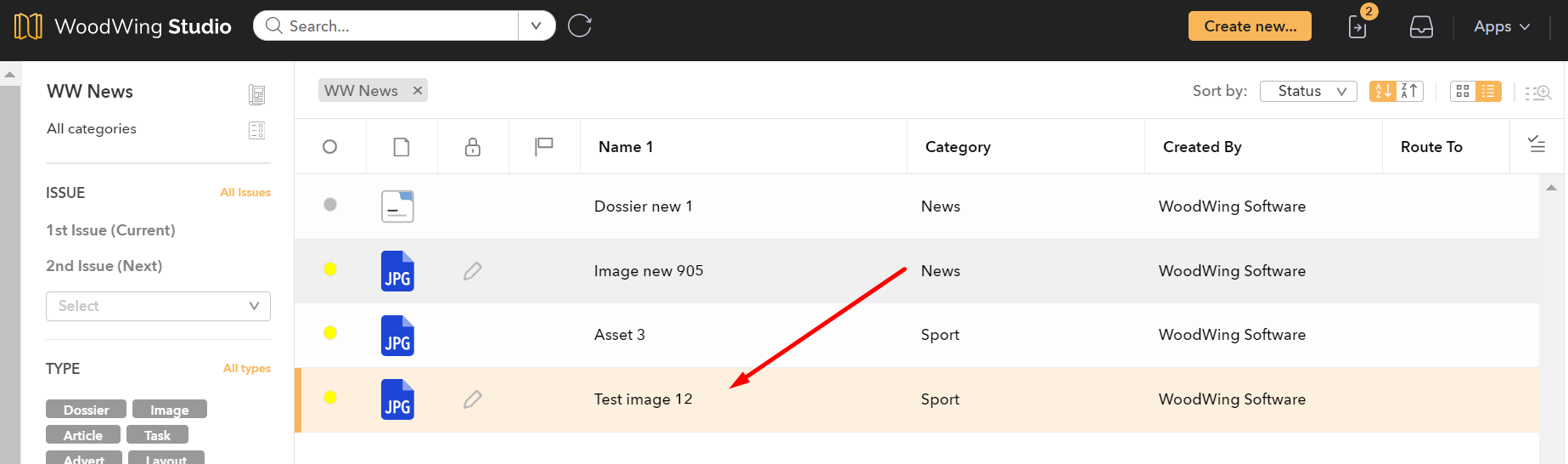

Test Case | Create new image | ||
Request Body Name | Parameter | Type | Description (Example) |
| Asset ID | String | Specify asset id for updating the metadata property |
BasicMetaData | Property Identifier | String | Specify property name e.g Name |
BasicMetaData | Property Value | String | Specify property value e.g <new name of the asset> |

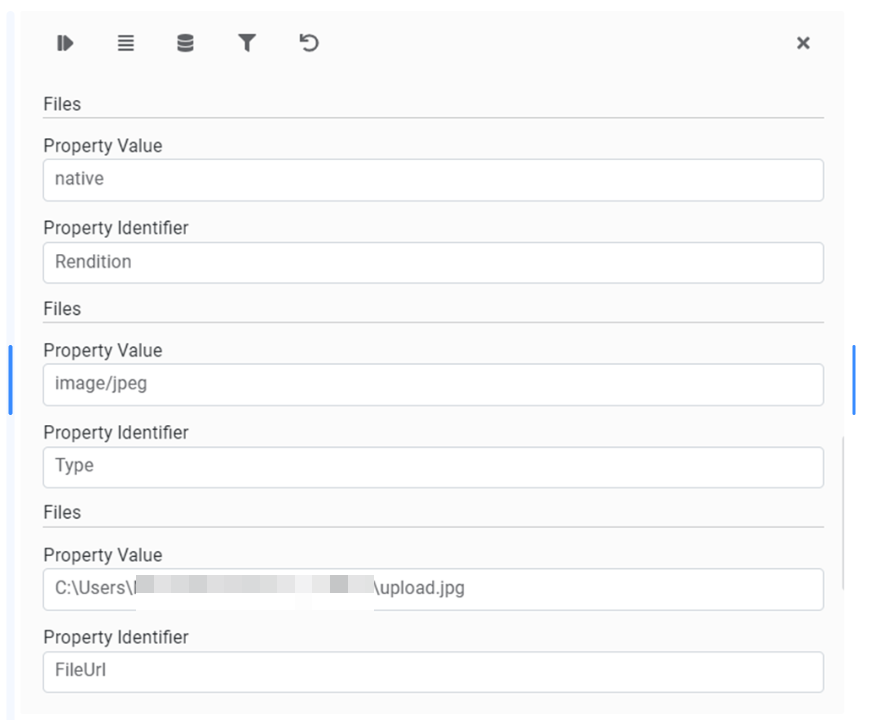

Files | Property Identifier | String | Specify property name e.g Name |
Files | Property Value | String | Specify property value e.g <new name of the asset> |

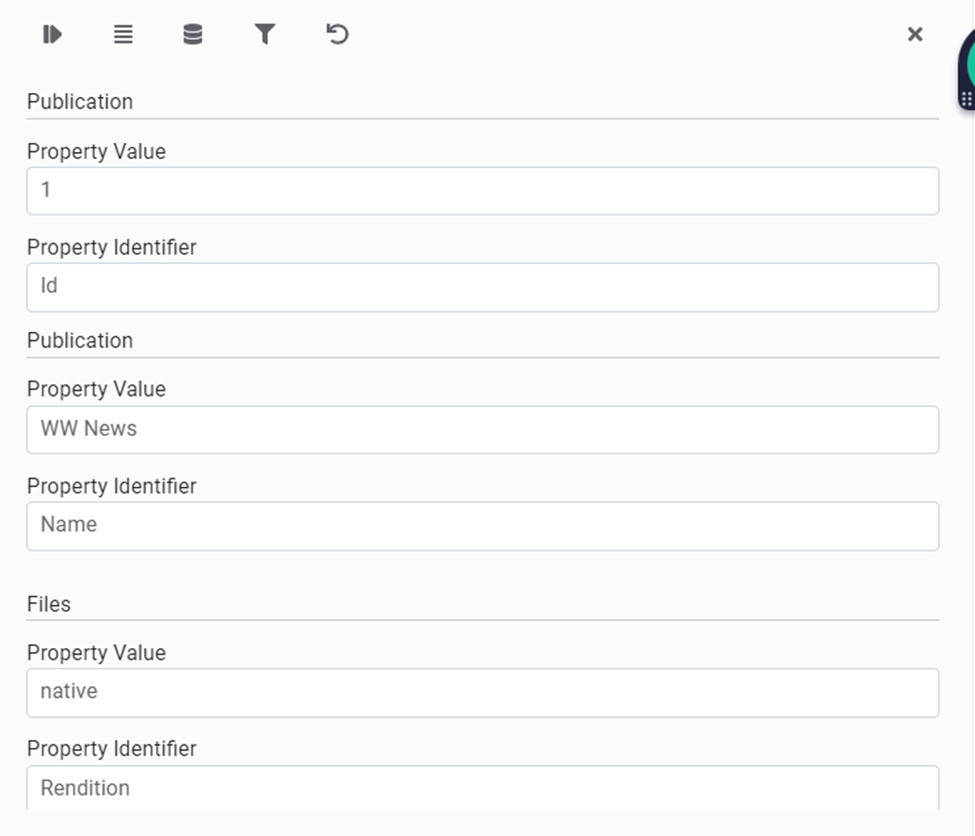

Publication | Property Identifier | String | Specify property name e.g Name |
Publication | Property Value | String | Specify property value e.g <new name of the asset> |
Category | Property Identifier | String | Specify property name e.g Name |
Category | Property Value | String | Specify property value e.g <new name of the asset> |

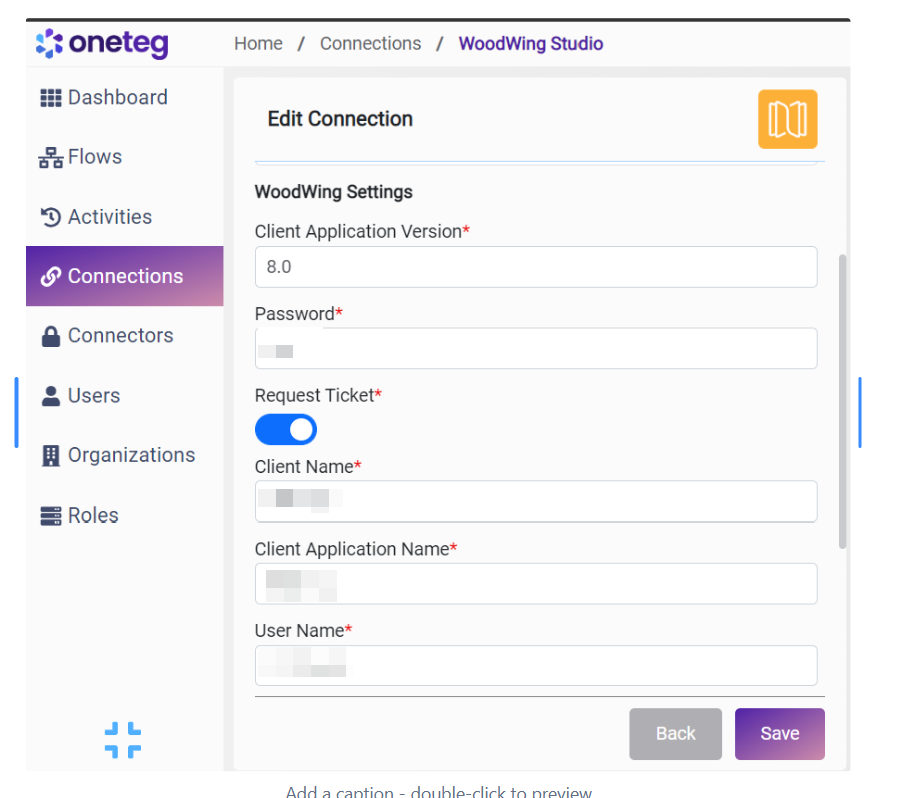

3. Connection Settings and Configuration
Settings Parameters | Value | Description | Required (Y/N) | Default Value |
|---|---|---|---|---|
Connector | Woodwing Studio | Connector Name | Y | Woodwing Studio |
Endpoint | Endpoint required for performing CRUD | Y | ||

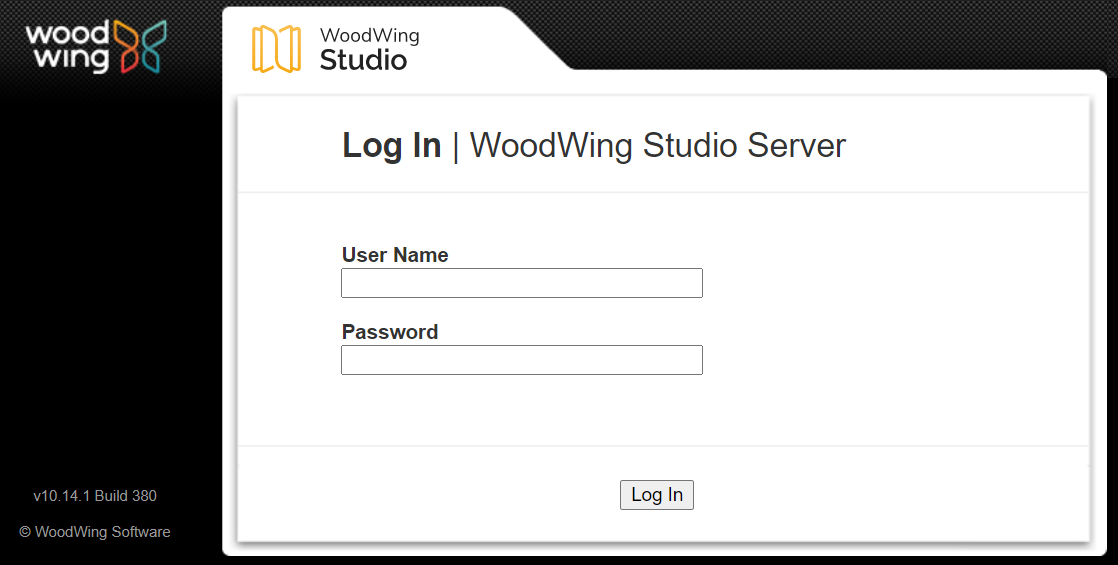

User Name | woodwing | User id for authentication | Y |
|
